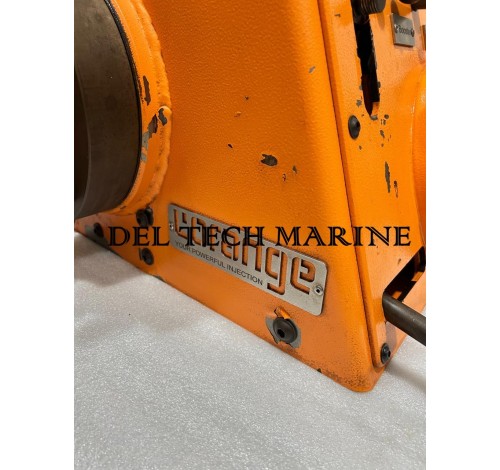

L'ORANGE FUEL INJECTOR/VALVE TESTER TYPE : GXO-G011A Serial No : 1753642

L'ORANGE FUEL INJECTOR/VALVE TESTER

TYPE : GXO-G011A
Serial No : 1753642

The test rig was developed for checking leaks, pressure-testing injection, measuring the
pressure drop of injection valves and for assembling/dismantling all L'O devices for medium speed large diesel engines.

GXO-G011a (bench-top system)
Purpose: medium-speed diesel engines
Weight: GXO-G011a = 71 kg
Dimensions: height: 330 mm excl. spray container
height: 1120 mm incl. spray container
width: 440 mm excl. spray container
width: 670 mm incl. spray container
depth: 510 mm excl. spray container
depth: 560 mm incl. spray container
Piston diameter: 8 mm
Safety valve: opening pressure = 900 bar
Pressure gauge: display up to 1000 bar / 14400 psi
Test oil: Fuchs Renotest LO
Test oil viscosity: 4.5 cSt/40°C
Test oil reservoir: approx. 3.5 liters
Test oil line: connecting thread 24 x 1.5
Maximum load: 120 kg (receiver)
